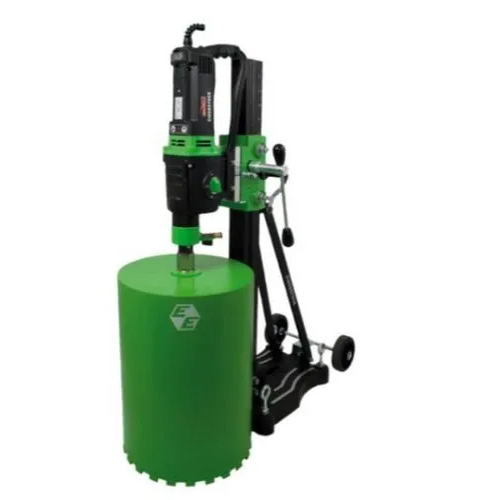

High Accuracy Diamond Core Drilling Machine

About High Accuracy Diamond Core Drilling Machine

Product details

DBE 352

Specification

• Rated Voltage (V) : 230
• Power Input (W) : 3,000
• Drilling Diameter (mm) : 41-352
• Max. degree of slope : 45
• Spindle Connection : 1 1/4 UNC
• Stroke (mm) : 620
• Column length (mm) : 995
• Rated Speed (rpm) : 230 / 500 / 1,030
• Weight (Kg) : 35

• Wet drilling in reinforced concrete, natural stone and asphalt
• Civil engineering

• Powerful 3,000 W motor with high power reserves and a long lifetime
• Electronic - soft start, temperature control and overcurrent cut-off, optical overload indication, constant speed
• service-LED - lets you know when the carbon brushes need changing (works for approx. 10 working hoursbefore shutdown)
• 3 speed oil bath gearbox - for optimal lubrication in all working positions, due to the newly developed oipump
• Mechanical safety clutch
• PUR-construction site cable  strong, for heavy duty use
• Universal connection fasten the motor to the drill rig without any tools
• Integrated spirit level on the machine as well as an additional handle and hole centre indicator allow for exact drilling
• Column of the rig can be adjusted to 45
• Compact combination base fixing with anchor or vacuum (vacuum set necessary)
• Feed lever change without any tools  easy change of the working site
• Removeable wheel axle (accessory) - easy transport

• Spanner
• Service Sheet
• User Manual
